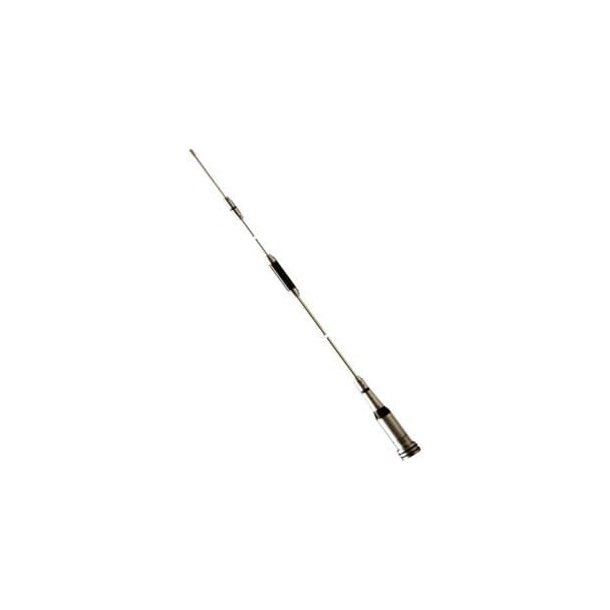

Sirio - HP 2070 duoband
Mere info:
Dual-band vehicular antenna working on 141 - 149 / 422 - 447 MHz. The very best materials have been used to guarantee the maximum strength and the best performance. The whip, made of 17/7 PH stainless steel, has an inclination system that allows the 90 tilting without using keys or tools. Also a particular attention has been paid to the UHF male connector with a gold plated center pin, PTFE insulator and silicone rubber gasket for a perfect waterproofing.
Electrical data
- Electrical type: 141 - 149 MHz: 1/4 λ / 422 - 447 MHz: 5/8 λ
- Gain: 141 - 149 MHz: 0 dB / 422 - 447 MHz: 2 dB
- VSWR: ≤ 1.2 on center frequency, on both bands
- Maximum continuous power: 141 - 149 MHz: 150 Watts (CW) / 422 - 447 MHz: 100 Watts (CW)
- Impedance: 50 Ohm
- More
Mechanical data
- Materials: Chromed brass, stainless steel 17/7 PH, nylon
- Height: 445 mm
- Weight: 270 gram
- Mounting type: On UHF-female (PL) connector (not included)
- Antenna connector: UHF-male (PL)
