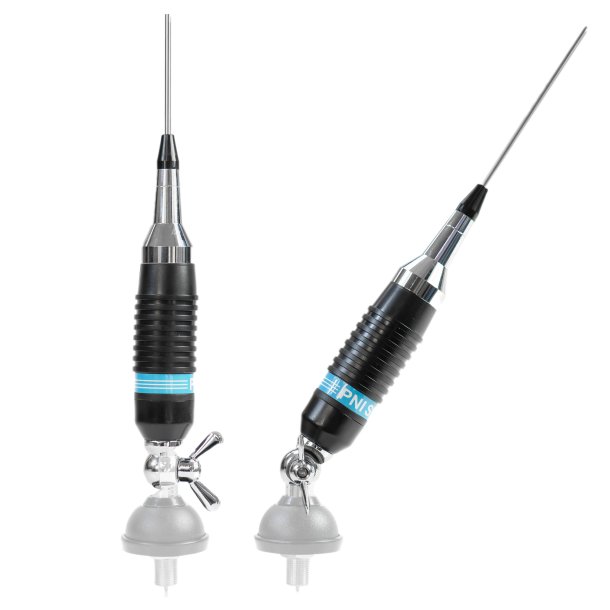

CB PNI S9 antenna with butterfly, spike length 120 cm, without cable, 600W, 26-28MHz
|
|
High performance CB antennaThe performance of the product is closely related to the technical characteristics that the antenna has under ideal conditions of installation and use: SWR <= 1.2: 1, maximum power applied 600 W, impedance 50 Ohms, stainless steel etc. |
Distance of communicationCommunication distance is another decisive factor in the acquisition and use of a CB antenna. Thus, the communication distance of 12-14 km is reached under ideal working conditions: calibrated antenna, open field without obstacles, the station with maximum legal power allowed by 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance. |
|
|
|
Antenna lengthAntenna length is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna is, the larger the range. PNI S9 has a length of 120 cm. |
Adjustable angleThis antenna can be tilted with the help of the butterfly screw with which it is provided, to enter passageways, garages or low height parking lots. Apart from these situations, an inclination of more than 30 degrees is not recommended as it may affect the antenna performance. |
|
| Product identification | |
| Product code | PNI-S9 |
| Tape | CB |
| Product color (spike) | Silver |
| General characteristics | |
| Working frequency | 26 - 30 MHz |
| Number of channels | 90 |
| Maximum applied power | 600W |
| Minimum SWR in the center of the band | less than 1.2: 1 |
| Length | 120 cm |
| impedance | 50 Ohm |
| Material | Stainless steel |
| Tip connector | DV |
| Hole diameter (mm) | 12.5 mm |
| Weight | 280 g |
| dimensions | 131 x 10 x 3 cm |
| Operating temperature | -26 ° C ~ + 60 ° C |
| The package contains | |
| Radio station antenna | Yes |
