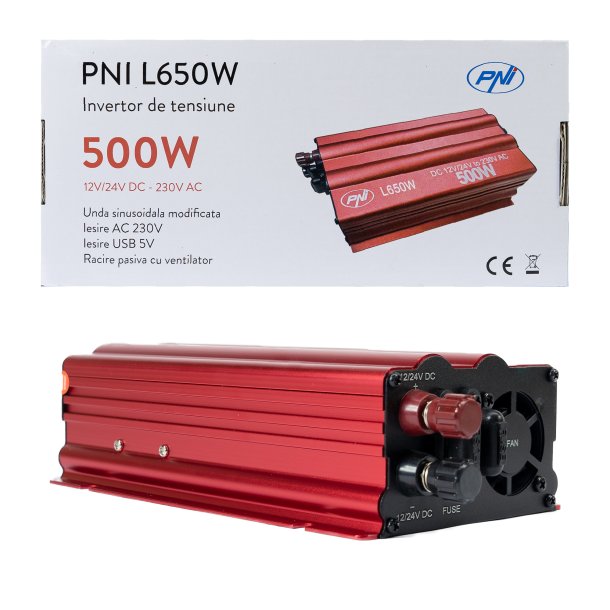

Voltage inverter PNI L650W dual power supply 12V/24V, output 230V, 500W, modified sine, USB plug 5V 500mAh, with power clamps and cigarette lighter plug included

Modes of use with dual power supply

220V socket and USB output - The PNI L650W inverter is equipped on the output with a 230 V maximum 500W modified sine alternating current socket for powering any compatible electrical device, but also with a USB socket (5V 500mAh) for charging, respecting the technical indications and consumption maximum allowed.

Multiple applications - PNI L650W can be used to power various electrical devices with resistive load such as: televisions, lighting lamps (not fluorescent), radio, fans, chargers, as well as for charging via USB cable a smartphone, mp3, tablet.

Compatibility - The PNI L650W inverter can be used in any vehicle because it is designed to transform the voltage supplied by a 12V or 24V battery into 230V 50 Hz modified sine voltage. To benefit from the declared maximum power, it is only used connected directly to the car battery.

Always safe

Overheating protection - The aluminum housing of the PNI L650W inverter and the built-in fan allow double cooling: passive and active, extremely efficient and correct operation all the time.

Operating status warning - the status LEDs of the inverter warn you of the presence of anomalies / error situations such as:

• discharged vehicle battery;
• overheating;
• device overload;
• indicate its connection to a power source
• you have connected a device that needs a pure sine wave (equipment with a motor, compressor, inductive power source or which at start-up exceeds its declared capacity, respectively that of the output of the inverter).

WARNINGS

1. Do not use a consumer with a power greater than 100W by feeding it to the cigarette lighter socket. There is a risk of burning the cigarette lighter socket. For the use of consumers larger than 100W, it is recommended to connect the inverter directly to the terminals of the car's battery.

2. To obtain the maximum output power, you must connect the inverter directly to the car's battery, and the car must be turned on. Only in this way will the battery provide the necessary amperage to support the 500W output and consumption peaks.

Use the inverter only for powering small and medium-sized electronics such as: laptops, radios, mini TVs, small electronic power supplies, telephones, radios, etc.

3. This inverter does not work for devices that contain motors, e.g. refrigerators, refrigerators, electric tools - drilling machines (drills), angle grinders (flex), rotary hammers, etc. Pure sine wave inverters (e.g. SP1000W or SP2000W) are recommended for this type of devices.

4. Incompatible with solar panels. Car inverters cannot be used with solar panels. There are special inverters for solar systems (eg PNI GreenHouse SC1800C PRO)
