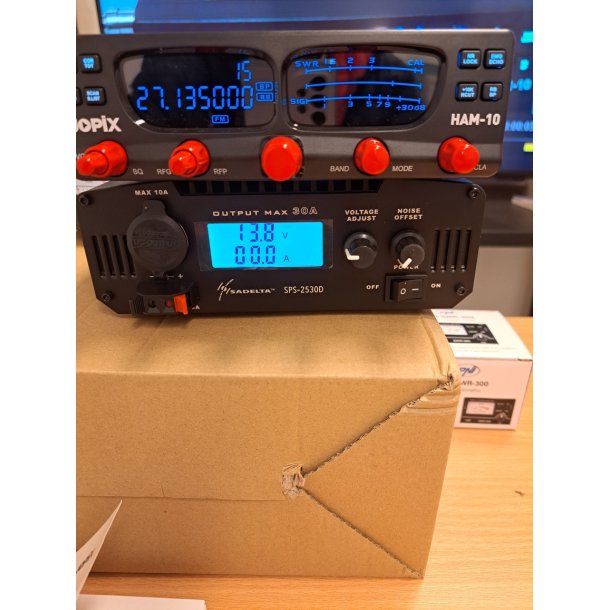

Jopix Ham-10 10m allmode 40W

Jopix Ham-10 10m allmode 40W NYHET!

Mere info:

he Jopix HAM-10 is a versatile multi-mode mobile amateur radio station for the 10m band with an output power on FM, SSB and CW of 40W and 12W for AM, which operates within the frequency band from: 28,000 to 29,700 MHz and supports different transmission modes (FM, AM, USB, LSB, CW and PA), allowing for great flexibility in communications.

With its bright, high-resolution dual LCD display with a choice of 7 display colors, the HAM-10 offers instant operational information via icons and its segment display, such as frequency, band and transmission mode, channel number, RF signal level, SWR meter, and functions, etc. Its easily accessible front buttons allow for effective and precise operation of the transceiver.

The Jopix HAM-10 offers adjustable output power levels of 4W, 8W and 40W, allowing users to easily adapt to different operating conditions. This transceiver also offers a large number of operational functions such as: ASQ, ECHO, Hi-cut, Beep, Dual Watch, Noise Blanker, ANL, Scan, Roger Beep, LCR, Microphone Gain Adjustment, TalkBack, Scan List, TOT, Digital RFG Adjustment and A.-RFG, which enhance the user experience and ensure accurate and reliable communication.

• Modulation: FM / AM / USB / LSB / CW
• Output power: AM/CW: 12 Watt / FM: 40 Watt / SSB: 40 Watt
• Channels: 40 channels by default in each band (A/B/C/D/E/F/G/H/I/J)
• Display type: LCD display
• Display colors: 7 display colors

• Voltage: 13,8 Volt
• Frequency step: 1 kHz / 5 kHz / 10 kHz / 100 kHz / 10 Hz / 100 Hz /
• Frequency stability: 0.001%
• Fuse: 15A / 250v
• Operating temperature: -10° to +50°C
• Frequency tolerance: ±0.005%
• Microphone: Dynamic
• Consumption: 5A (TX in Am) / 9A (SSB 30W PEP) / 0.6A (RX with squelch)

• Audio frequency response: 450 – 2500 Hz (AM / FM)
• Intermodulation distortion: SSB: 3rd order > -25dB / 5th order > -35dB
• SSB carrier suppression: 55dB
• Unwanted side band: 50dB
• Antenna impedance: 50 Ohm

• Frequency response: 300 to 2800 Hz (AM/FM
• Adjacent channel selectivity: 60 dB (AM/FM) / 70 dB (SSB)
• Maximum audio power: 3 Watt
• Internal speaker: 8 Ohm, round
• SSB sensitivity: 0.25 µV for 10 dB (S+N)/N
